EVPoint Charging Cable Open-End | 22kW | 10 meters

Three-Phase Open-End Cable for Tethered EV Chargers. Charge Electric Vehicles and Plug-in Hybrids with a Maximum Power of 22kW.

EVPoint Charging Cable Open-End | 22kW | 10 meters
EVPoint Charging Cable Open-End | 22kW | 10 meters
EVPoint Charging Cable Open-End | 22kW | 10 meters
EVPoint Charging Cable Open-End | 22kW | 10 meters

Entirely produced in Europe

Designed, developed and assembled in Europe.

ManufacturerEVPoint
Number of PhasesThree-phase
Cable Specification5 x 6 mm² (L1, L2, L3, N, PE) + 2 x 0.5 mm² (PP, CP)
Operating Voltage450 VAC
Maximum Current32 A
Power22 kW
Vehicle ConnectorType 2 female, IEC 62196-2 standard

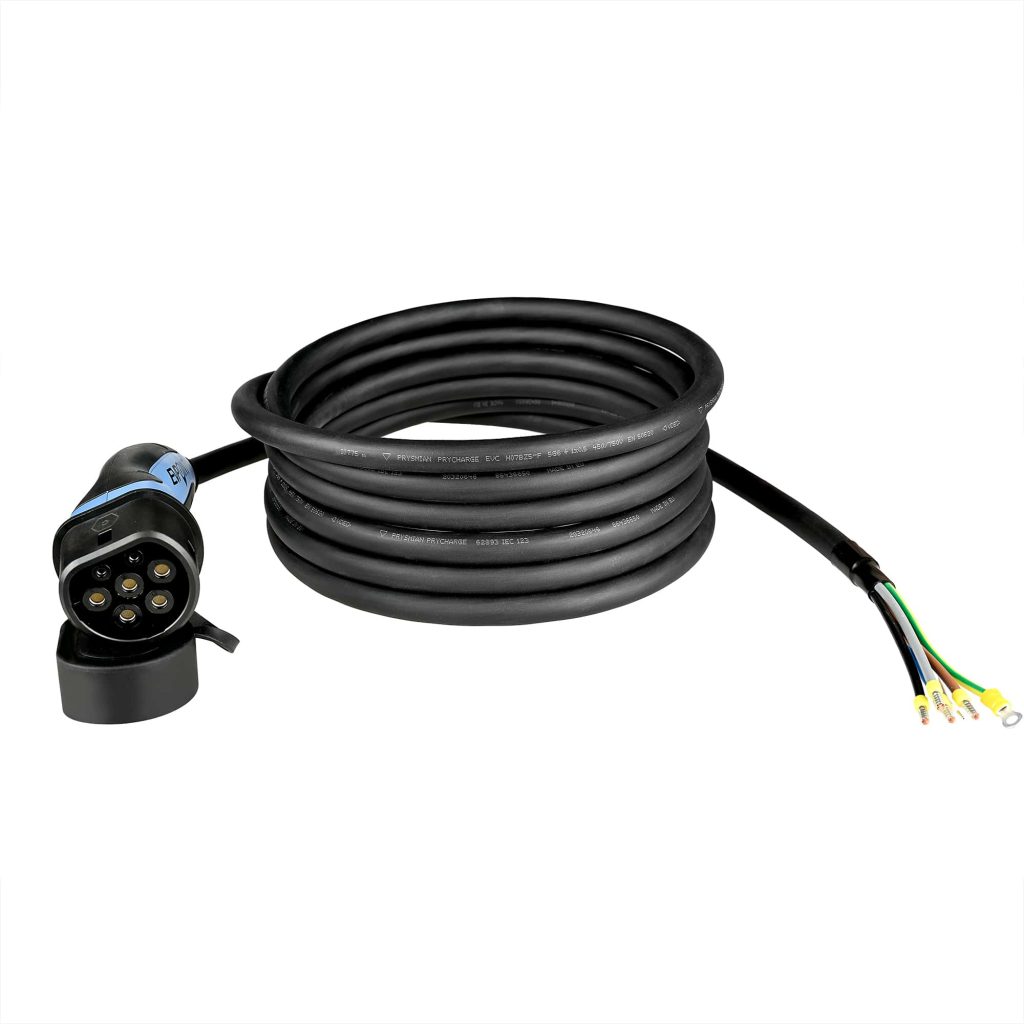

Charging Station ConnectorOpen-end for tethered EV chargers
Cable TypeStraight
Contact Resistance Max. 0.5 mΩ
Operational Cycles>10,000 plug-in and unplug cycles
Operating Temperature-30°C to +50°C
Cable ColorBlack
Connector ColorBlue
Length5, 8 and 10 meters
Protection RatingIP44
CertificationsCE, TÜV, IEC, RoHS
Warranty24 months
Weight 3.500 kg
